WDS PTG

Active infrared optical sensor for the protection of pipes gutters

  read »

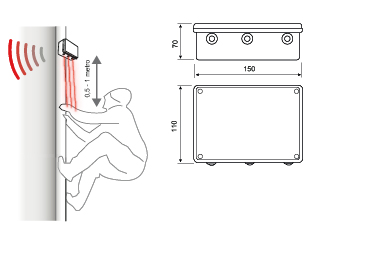

STRENGTHS TECHNICAL FEATURES DIMENSIONS IDEAL FOR OPTIONAL SPARE PARTS DOWNLOAD BROCHURE »

DETECTION RANGE: 0,5 ÷ 1,0 M

strengths

• Protection from climbing on pipes
• Protection against the removal of the tubes
• Automatic alignment
• Insensitive to atmospheric phenomena
• Self-test with buzzer
• Adjustable sensitivity
• Interface for radio WDS TX 433
• Battery life greater than 5 years

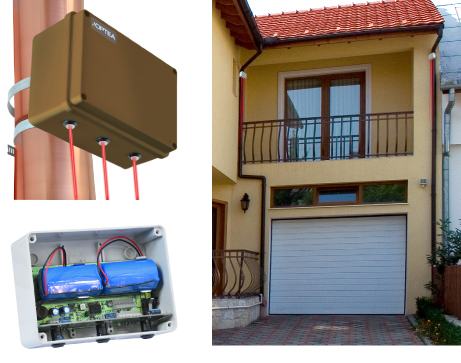

Sensor self-powered for the protection of pipes gutters. Operation Active infrared (optical triangulation approach for detection), Open Collector Outputs Alarm / Tamper proof and range detection adjustable from 0.5 to 1 meter. Watertight box IP 56.

On request, possibility to paint the box with custom color

technical features

• Power supply: Lithium battery, operating more than 5 years
• Trigger time: 0,5 sec
• Reactivation time: 4 sec
• Alarm output: N.C. (open collector)
• Tamper output: N.C. (open collector)
• Power output: 3 or 3,6 V (each tramsmitter)
• IP 56



IDEAL foR

• Protection pipes gutters
• Marquees


OPTIONAL

spare parts

WSA BATCN
Lithium Battery 19 Ah
