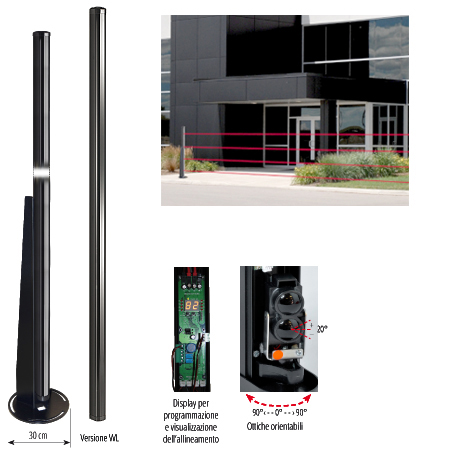

DIGI 100 [ WL ]

Active infrared beams perimeter Barrier for outdoor , complete with base for ground installation.

    read »

	STRENGTHS VERSIONS TECHNICAL FEATURES DIMENSIONS IDEAL FOR OPTIONAL DOWNLOAD BROCHURE »

OPTICAL RANGE OUTSIDE: 100 m

OPTICAL RANGE INSIDE: 200 m
MINIMUM OPTICAL RANGE FOR CROSSED RAYS: 20 m

strengths

• ACG (Automatic Gain Control)

• Optical range for crossed rays: 20 m

• Alignment and programmable parameters by the display

• Twin lens for each beam


• Wired Synchonism (2 wires RS 485)

• Horizontal adjustment 180°

• Vertical adjustment ± 20°

• Disqualification and thermostat built in

• Display alignment

• MEMORY function
  > Reading of the last 20 alarms



VERSIONs

Digital 100-15
3 Rays (Tx + Rx)
H = 1,5 m
Digital 100-20
4 Rays (Tx + Rx)
H = 2,0 m
Digital 100-25
4 Rays (Tx + Rx)
H = 2,5 m
Digital 100-30
4 Rays (Tx + Rx)
H = 3,0 m

DIGI 100-15 WL
3 Rays (Tx + Rx)
H = 1,5 m
DIGI 100-20 WL
4 Rays (Tx + Rx)
H = 2,0 m
DIGI 100-25 WL
4 Rays (Tx + Rx)
H = 2,5 m
DIGI 100-30 WL
4 Rays (Tx + Rx)
H = 3,0 m

technical features

• Power supply: 12 Vcc - 180 mA
• Triggering time: 50 ÷ 990 mSec
• Tur on time: 0.1 ÷ 9.9 Sec
• Thermostating: 24Vca - 40W
• Alarm output: N.C.
• Tamper proof output: N.C.
• Output disqualification: N.A.

DIMENSIONs

APPLICAtions

IDEAL foR

• Industrial Warehouses
• Markets
• Small gardens
• Outside storage
