Products » Windows active Barriers
LITIO RELE
Active infrared self-powered barrier for windows
read »
 |
|
RANGE BLACK MODEL: 10 m
RANGE WHITE MODEL: 5 m
strengths
- Optical synchronization
- Number of beams with double optics: 2 to 6
- Position adjustable
- Trigger time: 150 mSec
- AND Function (adjacent beams)
- Low battery signal with buzzer (sound differentiated Tx or Rx)
- Batteries integrated in the profile
- Optical transmission of tamper and low battery to the receiver barrier from the Tx side barrier
VERSIONs
LITIO RELE 05
H=0,5 m – 2 beams - Battery life: 3 years
LITIO RELE 10
H=1,0 m – 4 beams - Battery life: 2 years
LITIO RELE 15
H=1,5 m – 5 beams Battery life: 2 years
LITIO RELE 20
H=2,0 m – 6 beams Battery life: 1,8 years
With "B",suffix all-white barrier
technical features
- Alarm outputs:: RELAY N.C.
- Tamper outputs: RELAY N.C.
- Batteries integrated in the profile: (4 x AA)
- Aluminum profile: (26 x 26) mm
- Possibility profile cutting
- Available colors: Black or White

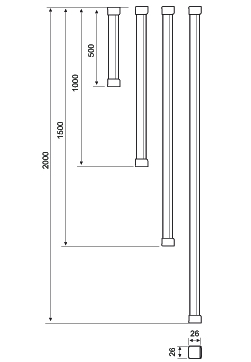

DIMENSIONs
IDEAL for
- Window and Doors Protection
OPTIONAL
|
KIT BOX 40x40x240 mm with 2 batteries from 19Ah and 2 Mini-Din cables lenght 30 cm |
KIT BOX B
|
caps ± 90 ° (4 pieces)
|
|
KIT HR B caps ± 90 ° (4 pieces)
|
|
spare parts
LITIO BATT
Lithium Battery 3,6V - 2.7 Ah
